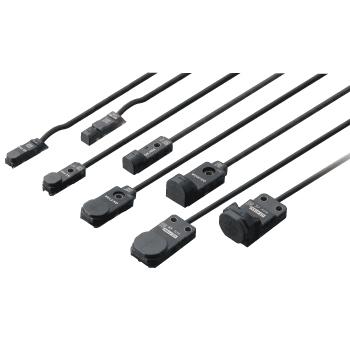

This sensor has the longest stable sensing range among the same level of rectangular inductive proximity sensors in the industry. It is easy to install the sensor.

Type Maximum operation distance Stable sensing range GX-F/H series Previous model GX-□6 1.6 mm 0.063 in 0 to 1.3 mm 0 to 0.051 in 0 to 1.2 mm 0 to 0.047 in GX-□8 2.5 mm 0.098 in 0 to 2.1 mm 0 to 0.083 in 0 to 1.8 mm 0 to 0.709 in GX-□12 4.0 mm 0.157 in 0 to 3.3 mm 0 to 0.130 in 0 to 3.0 mm 0 to 0.118 in GX-□15 5.0 mm 0.197 in 0 to 4.2 mm 0 to 0.165 in 0 to 4.0 mm 0 to 0.157 in   Long sensing range 8.0 mm 0.315 in 0 to 6.7 mm 0 to 0.264 in 0 to 6.4 mm 0 to 0.252 in

Thorough adjustment and control of sensing sensitivity greatly reduces individual sensor differences and variations.
The work of adjusting sensor positions when using multiple sensors and when sensors have been replaced is much easier.

Example: GX-□8

product design have been totally revised to provide excellent temperature characteristics.
Stable sensing can be obtained regardless of the time of day or the yearly season.

* Typical

The new integrated construction method used provides shock resistance of 10,000 m/s² (approx. 1,000 G in X, Y and Z directions for three times each), and vibration resistance clears durability tests of between 10 and 500 Hz (3 mm 0.118 inamplitude in X, Y and Z directions for 2 hours each). In addition, resistance to impulse noise is approx. three times greater than for previous models.

Components such as the sensor coil and core and product design have been totally revised to provide excellent temperature characteristics.
Stable sensing can be obtained regardless of the time of day or the yearly season.

* For details, refer to the "SPECIFICATIONS".

A prism with a wide field of view has been developed. This has greatly improved the visibility of the operation indicators.

A metal sleeve has been inserted.
It prevents the sensor from being damaged by tightening too much.

The conductor's thickness was doubled for the GX-□6/□8. This makes it easier to handle and perform crimping work on the cables. In addition, the tensile strength of the crimping area has become higher.
