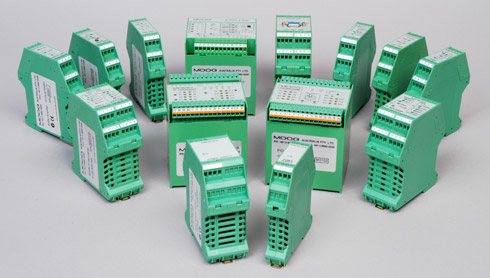

Moog's DIN rail mounted module analog control cards are ideal for use in enclosures where space is limited. Modules include servoamplifers, transducer conditioning electronics, command and auxilliary function modules, valve drive amplifiers, and power supplies. All of these modules are CE marked and require a 24V DC supply. The modules mount to standard 35mm DIN rail mount for easy installation and removal.

Features

• Internal selector switches allow for custom "tailoring" to fit your system's needs
• Front panel trim pots allow for quick and easy setup
• Front panel LED's and test points aid in troubleshooting

Din Rail Models

G122-826-001 Mobile P-I Servoamplifier – Step push button for optimizing

G122-829 P-I Servoamplifier – Compact DIN Rail Housing

G123-814-001 Dual PWM Amplifier – Use in Low End Closed Loop Application

G123-815 Buffer Amplifier – Compact, DIN rail mounting

G123-816 Hex Differential Amplifier – Analog Control Cards DINrail Modules

G123-817 LVDT Oscillator Demodulator – High Accuracy and Repeatability with Low Noise

G123-818 Signal Conditioner – Flexible Internal Dip Switch Configuration

G123-819 Ramp – Analog Signal Processing Circuit

G123-820 Setpoint and Ramp Module – Auto sensing of appropriate ramp

G123-825-001 Buffer Amplifier

G123-821 Mini DDV Amplifier – User settable frequency response

G128-809A Power Supply
